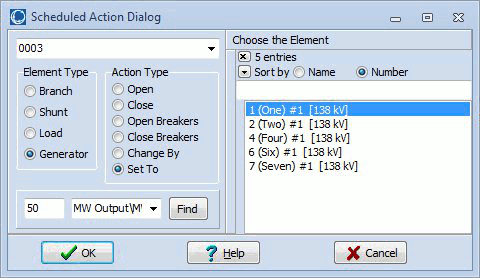

Scheduled Action Dialog

Concept Link IconSee Also



Scheduled Actions are similar to the actions used in Contingency Analysis: they define a specific action that can be applied to a particular device.


Scheduled Action Group

The dropdown in the top-left corner sets which Scheduled Action Group owns this action. Start and End times are set through a Scheduled Action Group.

Device

Currently, four types of elements can be affected by Scheduled Actions: Branches, Shunts, Loads, and Generators. The type of element being targeted is set in the Element Type radio group, which populates the element chooser with all relevant system elements.

Action Type

Scheduled Actions are similar to actions in Contingency Analysis. Devices can be Opened, Closed, Opened with Breakers, or Closed with Breakers, and Generators can have a particular field Set To a value or Changed By a value.
