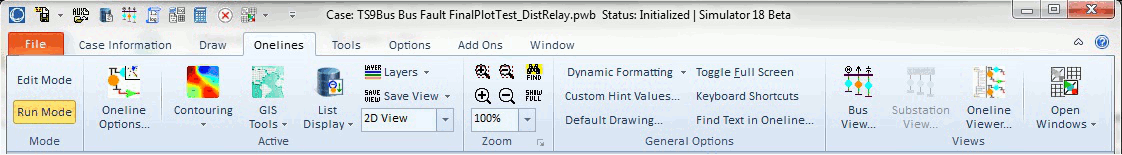

The Onelines ribbon tab generally consists of buttons and menus that provide access to modifying the appearance of a oneline diagram you have already created. For access to features regarding adding, moving, resizing, and formatting objects, see the Draw ribbon tab. The Oneline ribbon is shown below.
The Options ribbon consists of buttons and menus that provide access to customizing the software options. The ribbon is shown below.
Mode Ribbon Group
Edit Mode
Switches the program to Edit Mode, which can be used to build a new case or to modify an existing one.
Run Mode
Switches the program to Run Mode, which can be used to perform a single Power Flow Solution or a timed simulation with animation.
Active Ribbon Group
The Active ribbon group contains basic methods for customizing the appearance of basic analysis tools for customizing an existing oneline diagram. For more detailed help see the Active ribbon group topic
Zoom Ribbon Group
The Zoom ribbon group contains buttons for navigating a oneline diagram. For more detailed help see the Zoom ribbon group topic
General Options Ribbon Group
Dynamic Formatting Menu
This menu provides access to setting the Dynamic Formatting Options that apply to the active oneline, as well as formatting that applies to all onelines and Case Information Displays.
Custom Hint Values
Provides access to setting the Custom Hint Values that apply to all oneline objects..
Default Drawing Values
Provides access to the Default Drawing Values.
Toggle Full Screen
Click this button to cause the presently active oneline to be toggled to full screen.
Keyboard Shortcuts
Click on this button to open the dialog for defining Keyboard Shortcuts which allow you to open a oneline or auxiliary file directly from a function key.
Find Text in Oneline
Click on this button to open the dialog to Find Text in Oneline which will allow you to search for a text in the oneline or its oneline record objects.
Views Ribbon Group
Bus View
Opens the Bus View Oneline which provides a graphical display which allows you to quickly browse information about a bus and everything connect to that bus.
Substation View
Opens the Substation View Oneline which provides a graphical display which allows you to quickly browse information about a bus and everything connect to that substation.
Oneline Viewer
Opens the Oneline Viewer dialog which provides a convenient way to browse available onelines.
Data View Added in Version 20
Opens the Data View which provides a convenient way to browse the fields of one object.
Open Windows Menu
The Open Windows Menu provides a convenient method of switching between open windows. This includes User Interface Dialogs, Case Information Displays, and Oneline diagrams.
